Summarization:

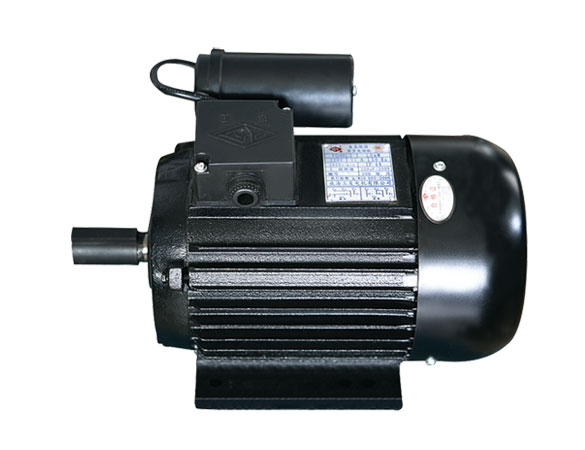

YC₂ series motor is amodified product based on YC series, whose performance is identical or better than YC series. The products have been widely used in the small machine tool. pump, air compressor, agricultural machinery and foodstuff machinery and so on. YC₂ series motor have Protection Class of IP44, Insulation Class of E or B, Cooling Method of IC411.

Working conditions:
1、Ambient operation temperature: It may vary with the changing weather but never exceeding 40℃.
2、Altitude: No more than 1000m
3、Rated frequency: 50Hz
4、Rated Voltage: 220V
5、Operation Mode: Consecutive(S1)

Technical data

Type	Rated power (KW)	Rated Volt (V)	Rated current (V)	Rated speed (r/min)	Efficient (%)	Power factor (cos￠)	Locked current (A)	Locked-rotor torque/Rated torque	Maximal torque/Rated torque	Yawp dB(A)
Synchronous speed 3000r/min 2pole
YC27112	0.37	220	3.36	2800	65	0.77	21	2.8	1.8	75
YC27122	0.55		4.65	2800	68	0.79	29	2.8		75
YC290S-2	1.1		9	2800	72	0.80	60	2.5		78
YC290S2-2	1.3		10	2800	73	0.80	70	2.5		78
YC290L-2	1.5		11	2800	74	0.81	80	2.5		83
YC290L2-2	1.8		13.5	2800	74	0.81	100	2.3		83
YC290L2T-2	2.0		15	2800	75	0.81	120	2.2		83
YC290L3-2	2.2		16.5	2800	75	0.81	120	2.2		83
Synchronous speed 1500r/min 4pole
YC27114	0.25	220	3.11	1400	58	0.63	15	2.8	1.8	65
YC27124	0.37		4.24	1400	62	0.64	21	2.5		70
YC290S-4	0.75		6.87	1400	68	0.73	37	2.5		70
YC290L-4	1.1		9.52	1400	71	0.74	60	2.5		73
